Gigabyte | SKU: B760M-DS3H-AX-DDR4

13% off

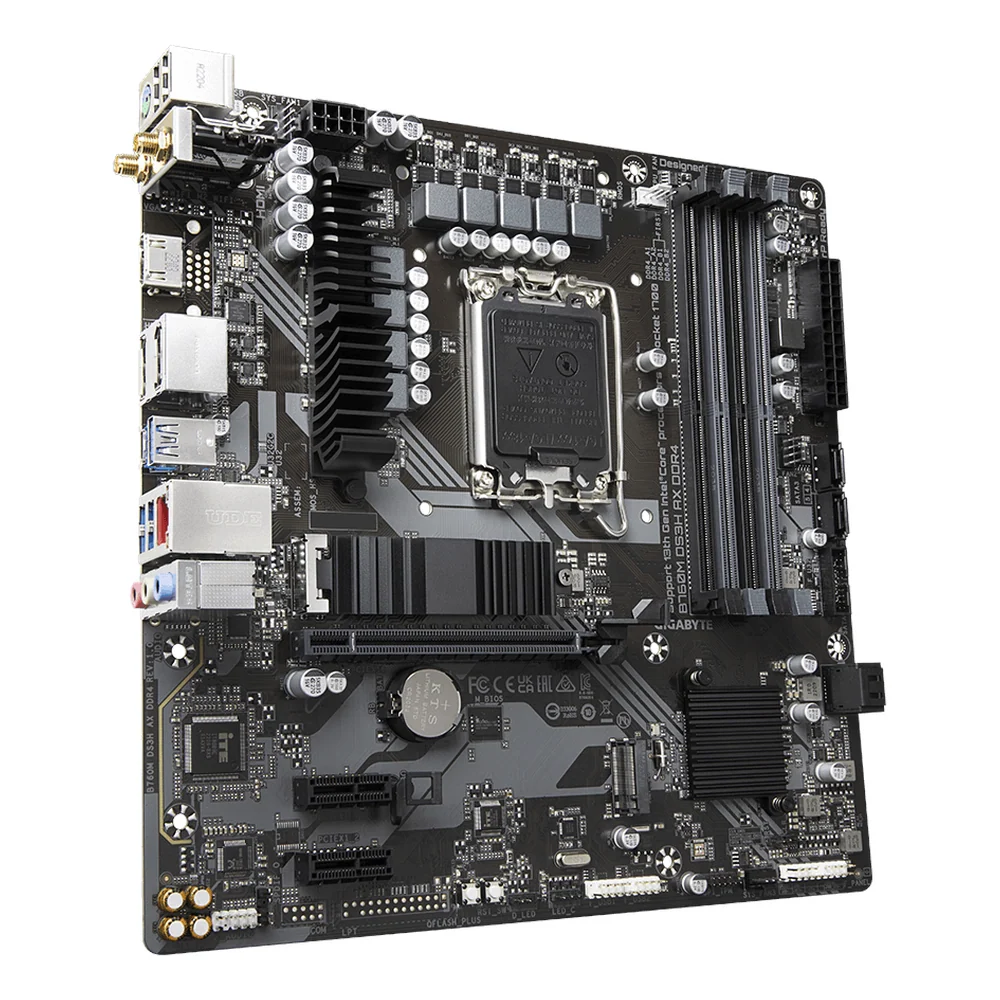

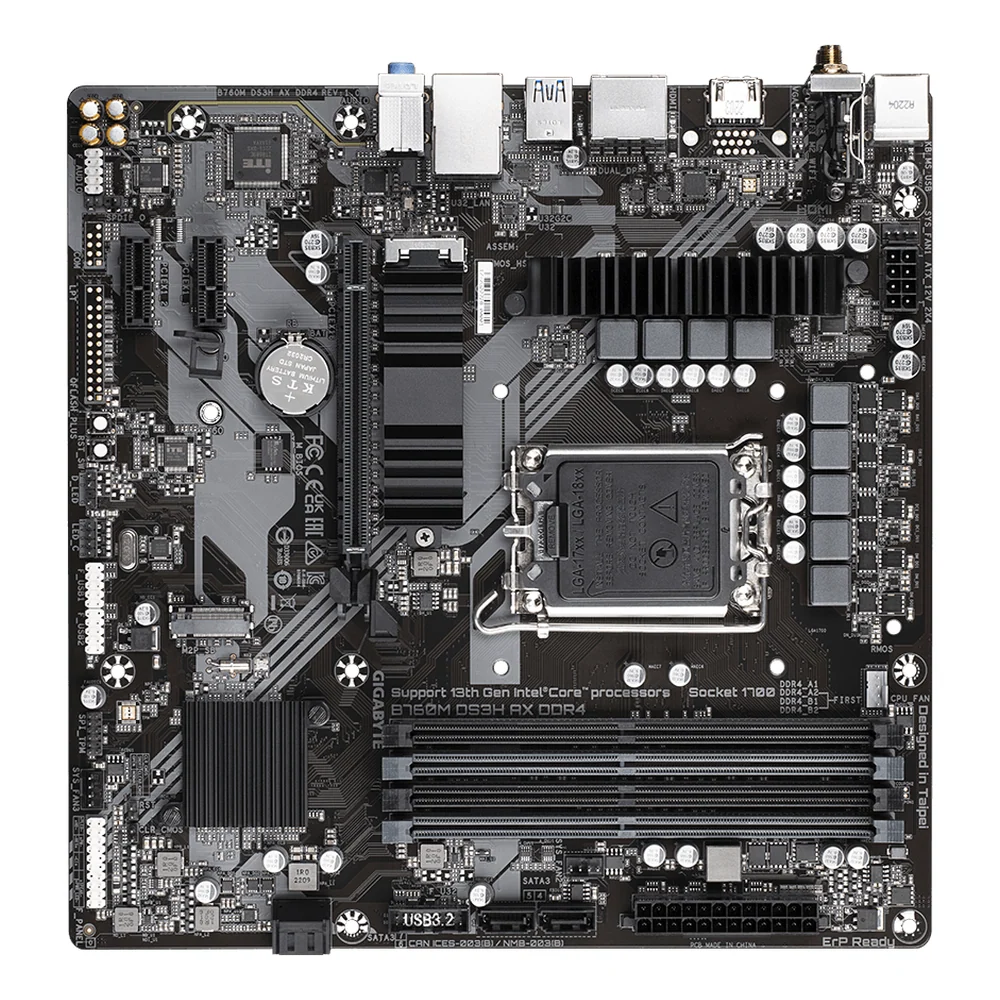

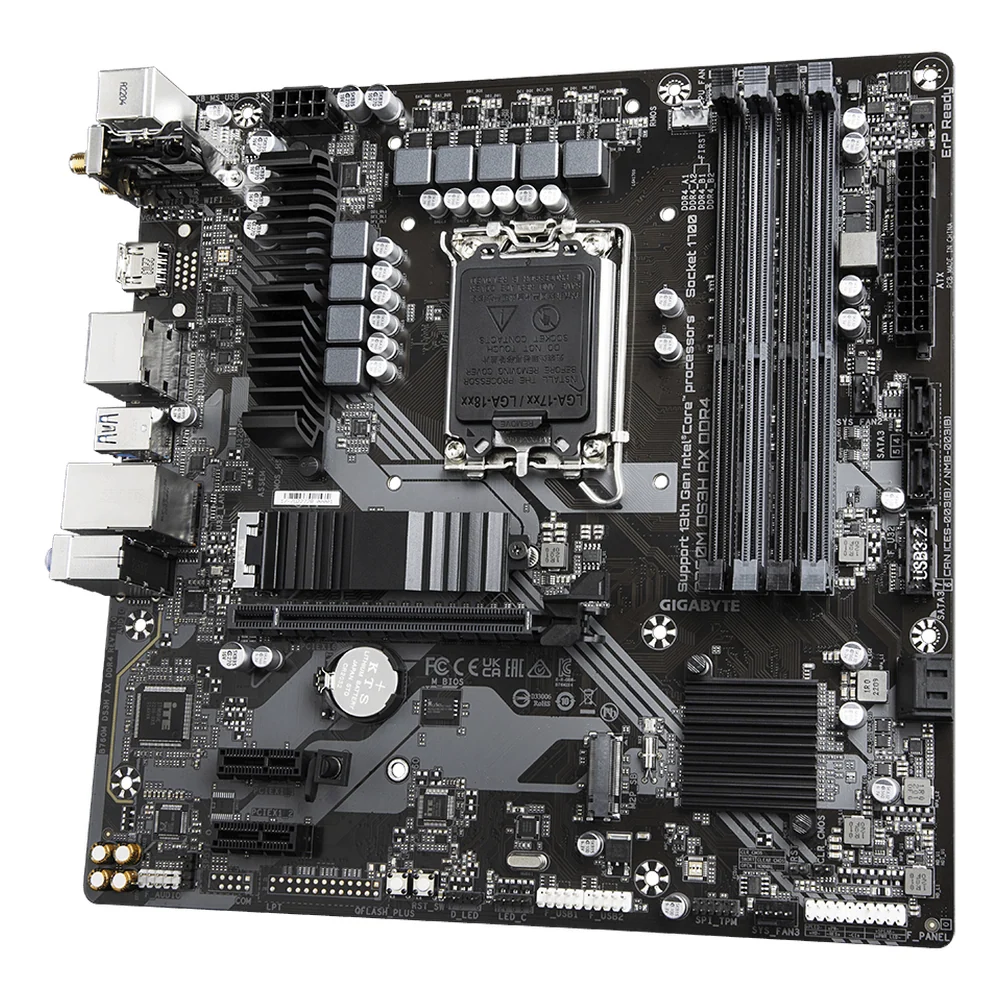

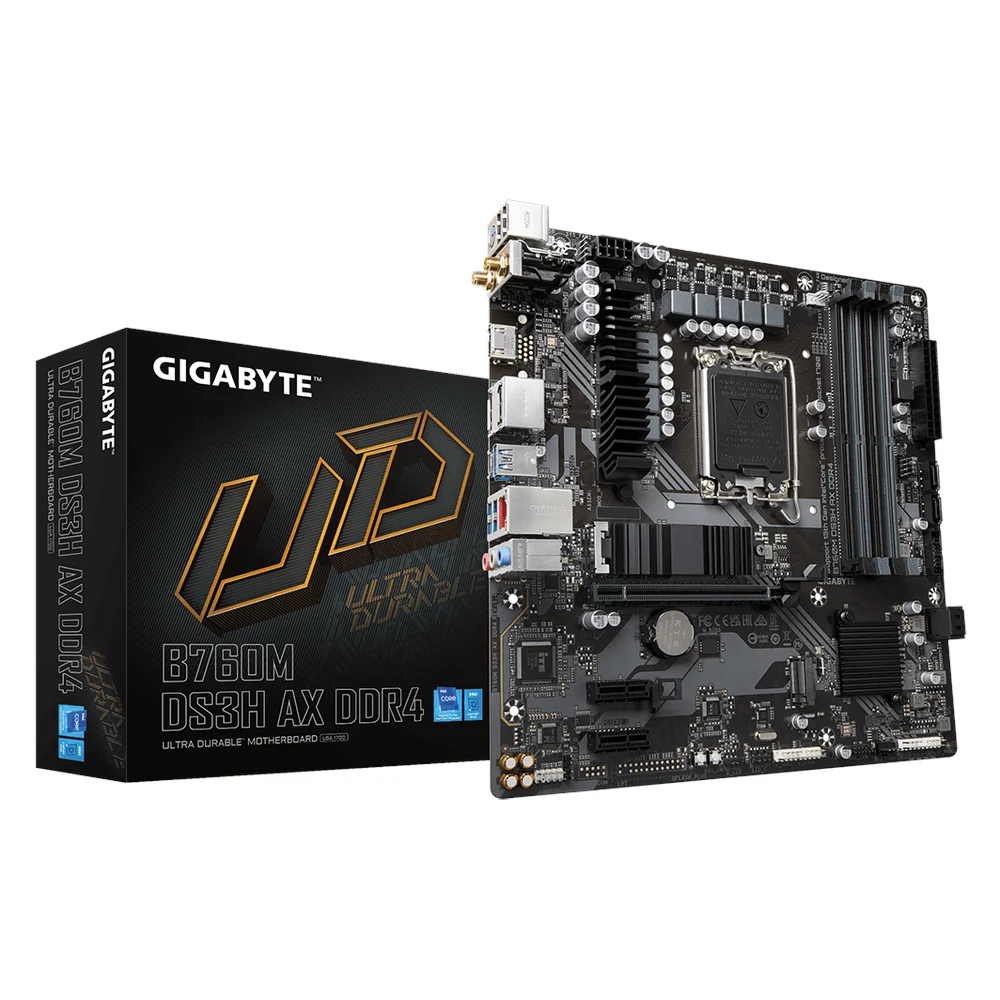

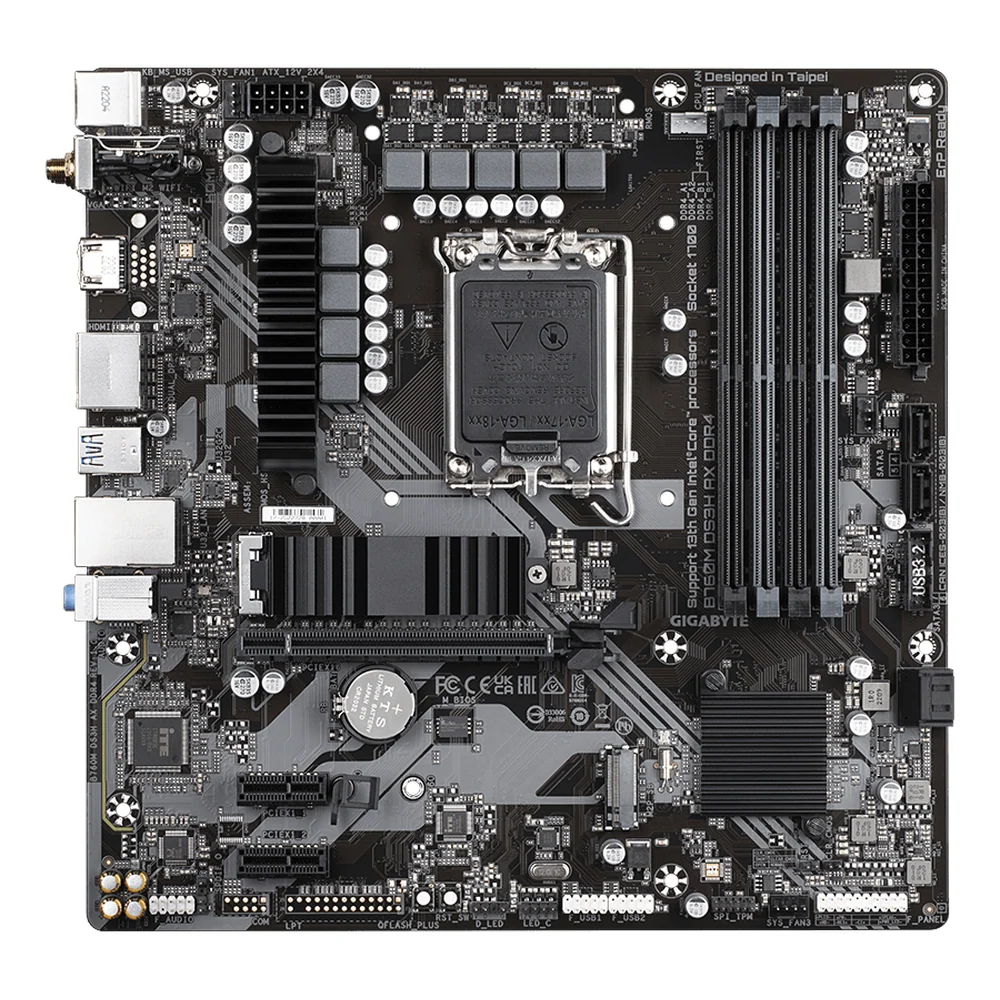

Gigabyte B760M DS3H AX DDR4 Micro ATX Motherboard, LGA1700 Socket, DDR4, Wi-Fi 6E, Realtek 2.5GbE LAN, HDMI, DisplayPort, 1 Year Warranty | B760M-DS3H-AX-DDR4

66.000 OMR 76.000 OMR

Inclusive VAT

Socket: LGA1700
Chipset: Intel B760 Express
Processor Support: 14th, 13th, and 12th Generation
Ram: DDR4
Max Ram: 128GB
Ethernet: Realtek 2.5GbE LAN chip
Wireless: Wi-Fi 6E + Bluetooth
Form Factor: Micro ATX
PCIe x 16: 1 x PCIe 4.0
1 Year Warranty

Official Warranty

100% genuine products with official oman warranty

Specifications

Wireless

Wi-Fi 6E + BLUETOOTH 5.2+
Chipset

Intel B760 Express
Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Graphics Device

1 x HDMI port
1 x DisplayPort
Expansion Slots

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage Interface:
2 x M.2 connector
4 x SATA 6Gb/s connectors
Memory Slots Support

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Sound

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
USB

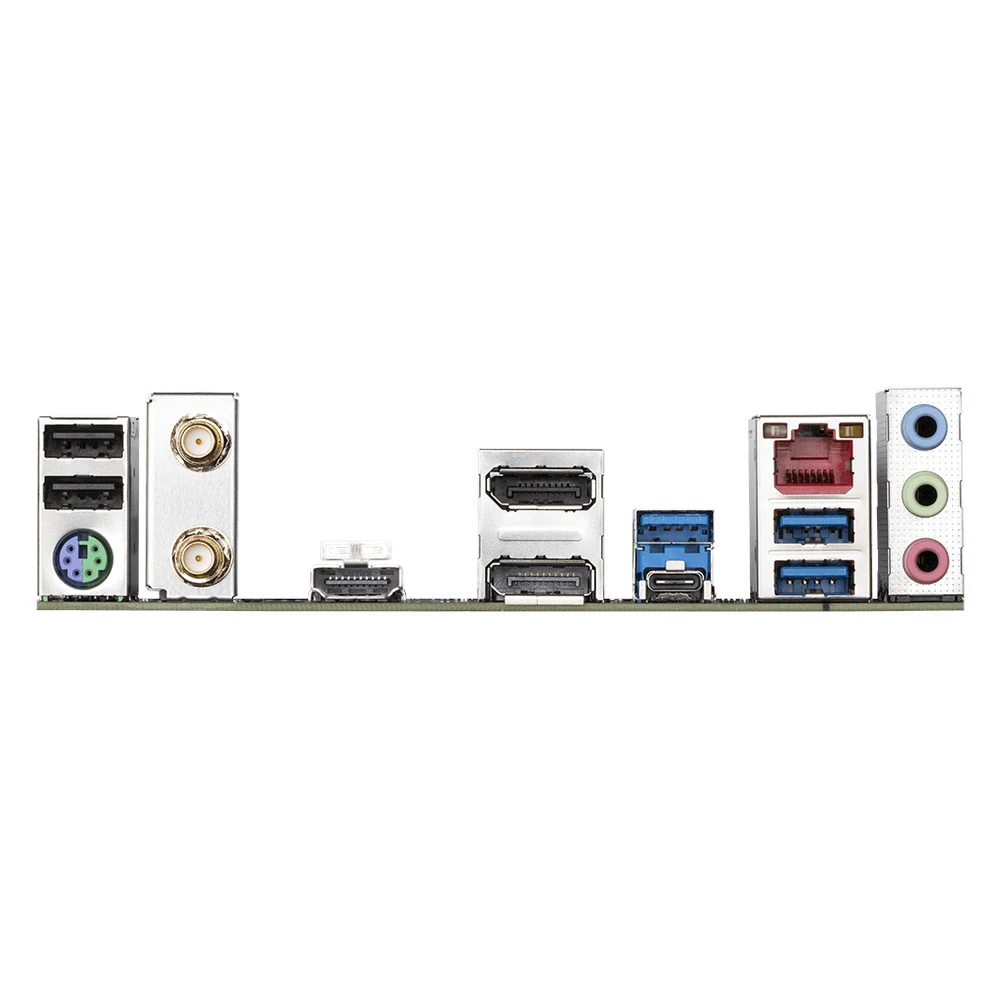

Rear Ports:
1 x USB 3.2 Gen 2 Type-C®,
3 x USB 3.2 Gen 1 Type-A,
2 x USB 2.0/1.1 Type-A
Front / Internal Headers:
1 x USB 3.2 Gen 1 Header (Supports 2 Ports),
2 x USB 2.0/1.1 Headers (Supports 4 Ports)
Ethernet

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Dimension WxDxH

24.4 x 24.4 cm
Form Factor

Micro ATX
Warranty

1 Year Warranty

Gigabyte B760M DS3H AX DDR4 Micro ATX Motherboard, LGA1700 Socket, DDR4, Wi-Fi 6E, Realtek 2.5GbE LAN, HDMI, DisplayPort, 1 Year Warranty | B760M-DS3H-AX-DDR4
