Gigabyte  |  SKU: B860M-DS3H
11% off

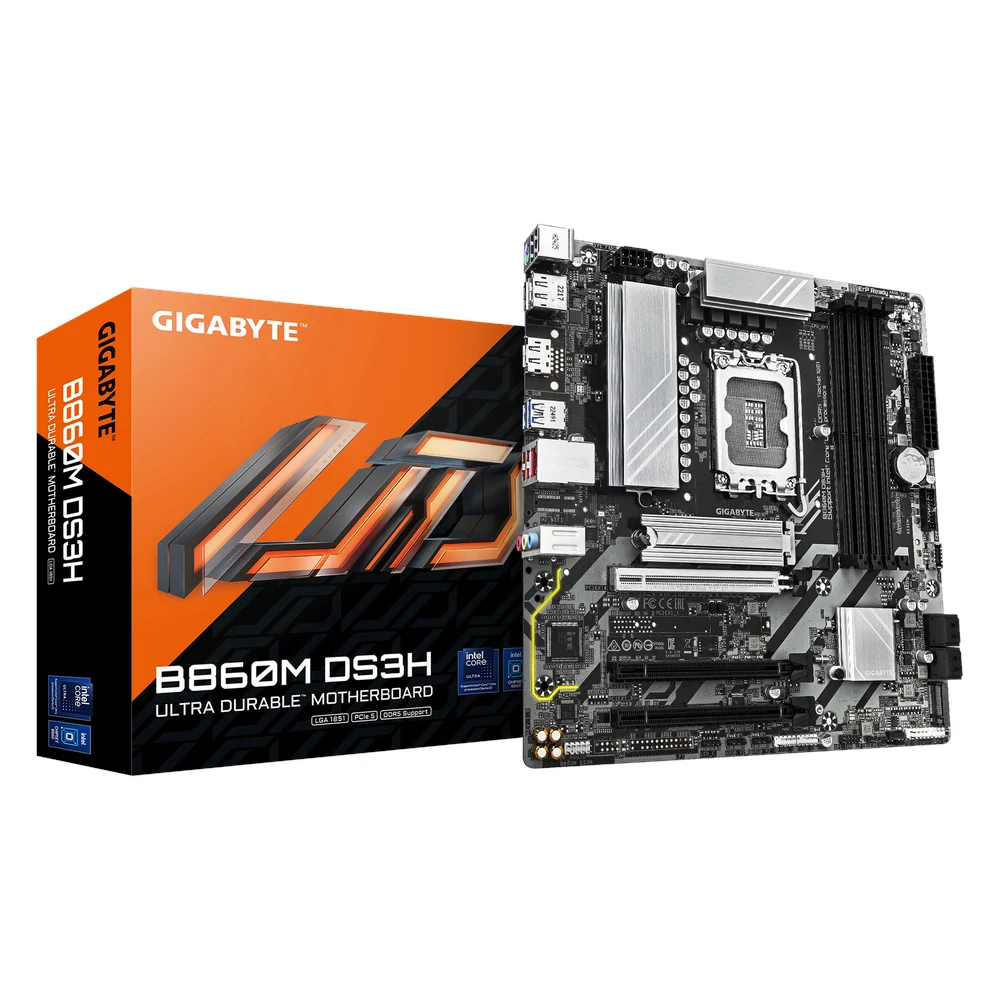

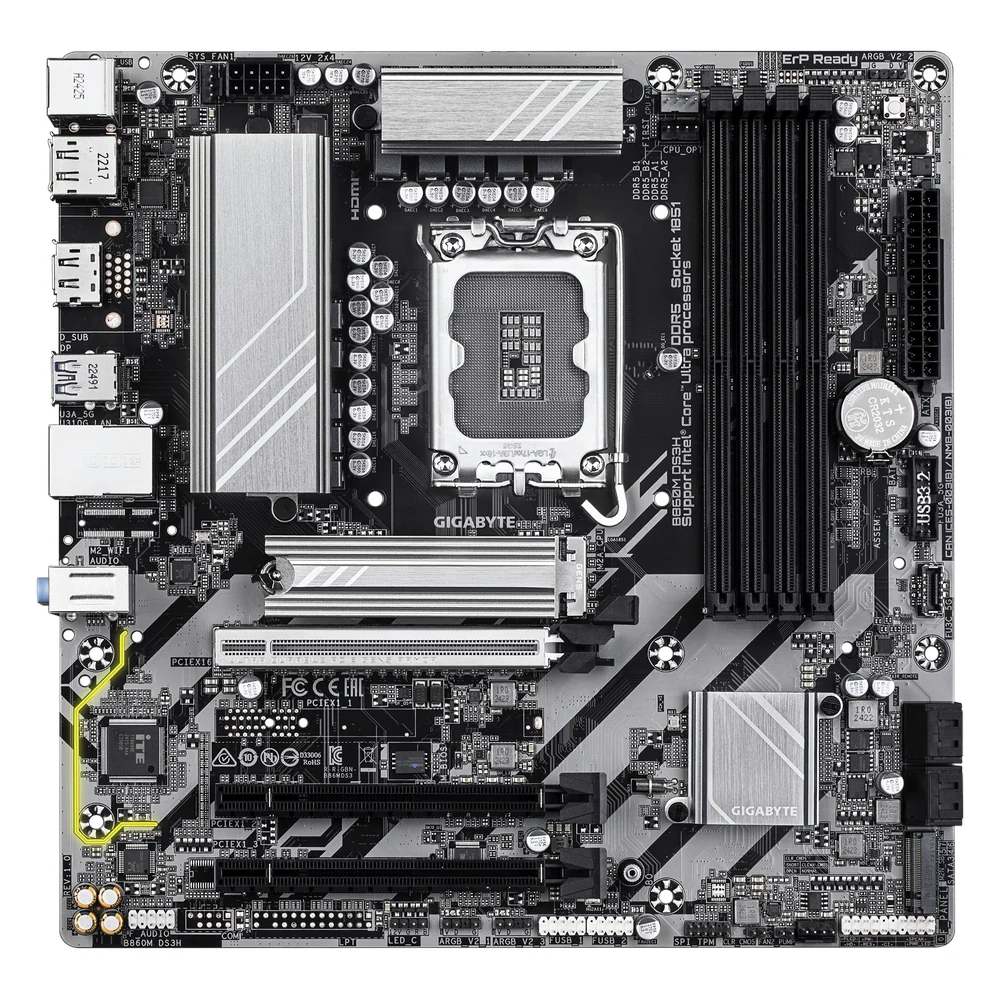

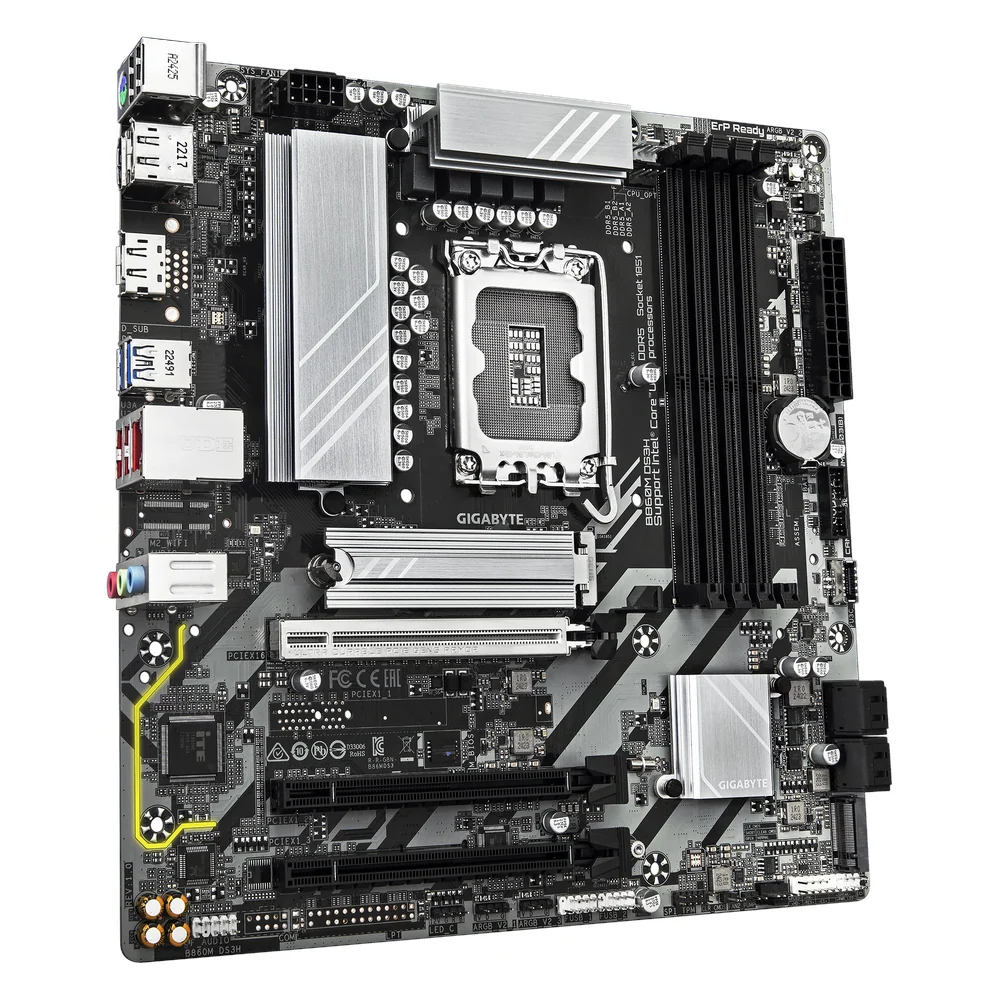

Gigabyte B860M DS3H Motherboard, LGA1851 Socket, mATX Form Factor, DDR5 Ram, PCIe 5.0, HDMI, DisplayPort, Realtek 2.5Gb Ethernet, 1 Year Warranty | B860M-DS3H

77.000 OMR 87.000 OMR
Inclusive VAT
  • Form Factor: Micro-ATX
  • CPU Support: Intel Core Ultra Processors, LGA 1851
  • Chipset: Intel B860
  • Ethernet: Realtek 2.5GbE LAN
  • Expansion Slots: 1 × PCIe 5.0 x16, 2 × PCIe 4.0 x1
  • Storage: 2 × M.2, 4 × SATA 6Gb/s
  • Memory: 4 × DDR5 DIMM, Up to 256GB, Dual-Channel
  • Graphics Output: HDMI + 2 × DisplayPort

Official Warranty

100% genuine products with official oman warranty

Specifications
  • Wireless
    -
  • Chipset
    Intel B860 Express
  • Internal I/O Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    1 x system fan header
    1 x system fan/water cooling pump header
    3 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header
    1 x Q-Flash Plus button
    1 x reset jumper
    1 x Clear CMOS jumper
  • Graphics Device
    1 x HDMI port
    2 x DisplayPort
  • Expansion Slots
    1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
    2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_2/3)
    Storage:
    2 x M.2
    4 x SATA 6Gb/s connectors
  • Memory Slots Support
    4 x DDR5 DIMM sockets supporting up to 256 GB
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  • Sound
    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
  • USB

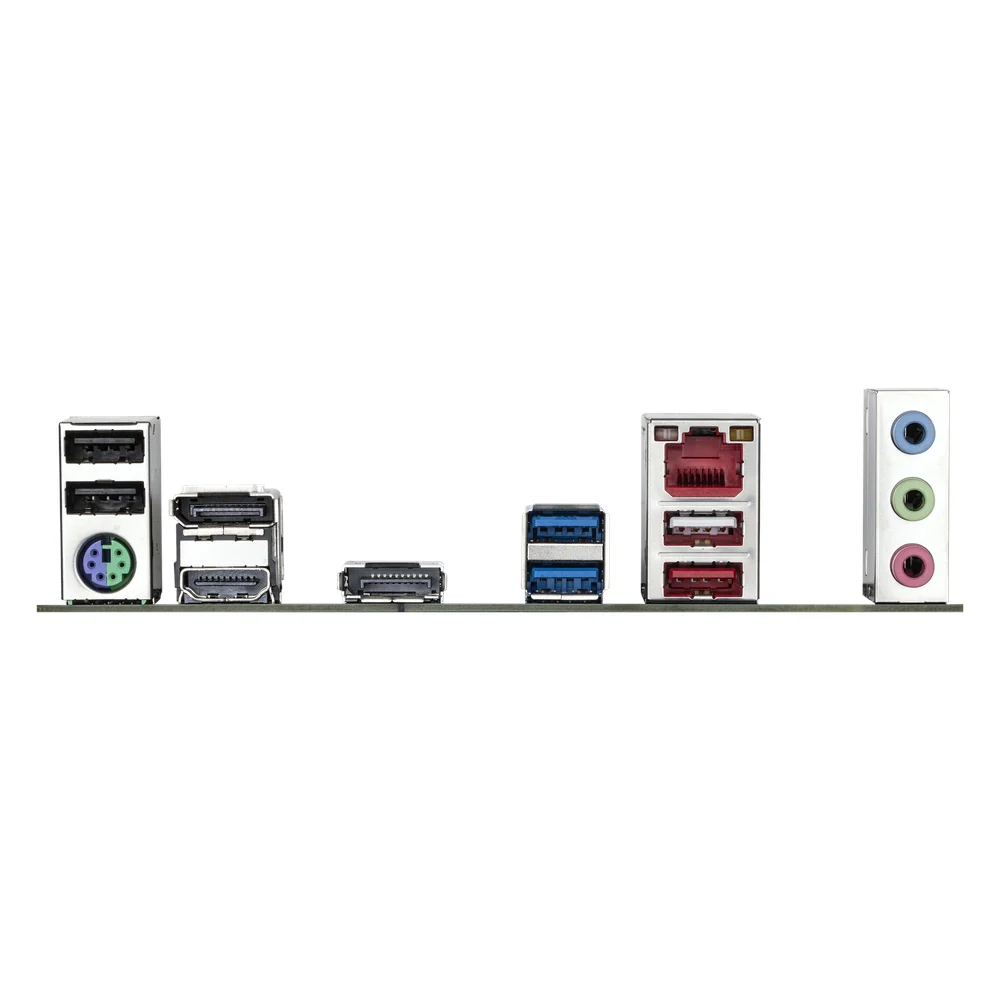

    Back Panel:
    1 x USB 3.2 Gen 2 Type-A (Red),
    2 x USB 3.2 Gen 1,
    3 x USB 2.0/1.1
    Internal Headers:
    1 x USB 3.2 Gen 1 Type-C Header,
    1 x USB 3.2 Gen 1 Header (Supports 2 x USB 3.2 Gen 1 Ports),
    2 x USB 2.0/1.1 Headers (Support 4 x USB 2.0/1.1 Ports)
  • Ethernet
    Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Dimension WxDxH
    24.4 x 24.4 cm
  • Form Factor
    Micro-ATX
  • Warranty
    1 Year Warranty
